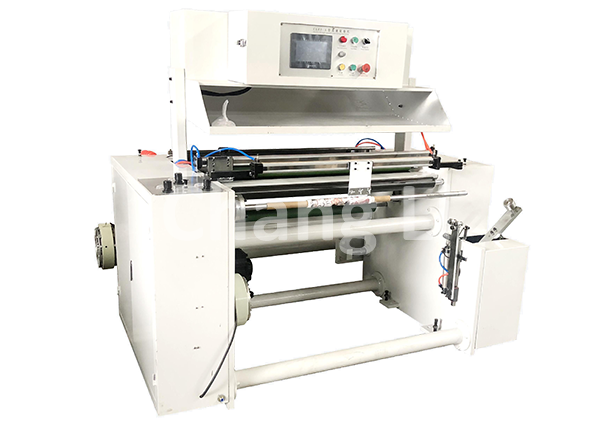

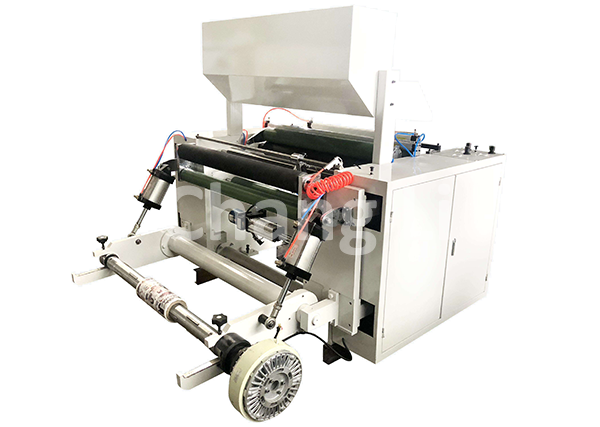

CLFJ-B型連體糾偏復卷機
發布日期：[2019-06-05] 點擊率：
適用范圍
該機主要用于各種紙類，紙塑復合類，膜類等裝飾材料以及包裝材料的復卷。
性能及特點
1.本機采用伺服定長送料，在高速運轉中保持高精度。
2.PLC觸摸屏自動計米，米數自動設定。
3.氣動式自動上料，收、放卷軸配氣脹軸。
4.自動割斷、停車時間隨意設定，預送料到收卷軸再繼續收料等功能。
Scope of application
Scope of application
This machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.
Performance and characteristics
1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.
2. PLC touch screen automatically counts meters, meters are automatically set.
3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.
4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.
主要技術參數 Main Technical Parameters
機型 Model | CLFJ-B800 | CLFJ- B1000 | CLFJ-B1300 | |
卷材寬度 MAX.Parent Web Width | 800mm | 1000mm | 1300mm | |
放卷直徑 Max.parent Web Diameter | Φ600mm | Φ600mm | Φ600mm | |
收卷直徑 Max.Rewinding Diameter | Φ300mm | Φ300mm | Φ300mm | |
速度 Max.Machine Speed | 10-180m/min | 10-180m/min | 10-180m/min | |
定長精度Fixed length accuracy | ±5mm | ±5mm | ±5mm | |
總功率 Total Power | 2.3KW | 3KW | 4.5KW | |
重量 Machine Weight | 1000kg | 1200kg | 1500kg | |
外形尺寸 Overall Dimensions 工作電壓 Working Voltage | 2600×2000×1600mm 二相220V50HZ | 2600×2200×1600mm 二相220V50HZ | 2600×2500×1600mm 三相380V50HZ | |
紙芯規格Paper core specification | 25mm, 38mm,50mm等 (or according to your requirement) | |||
